Features

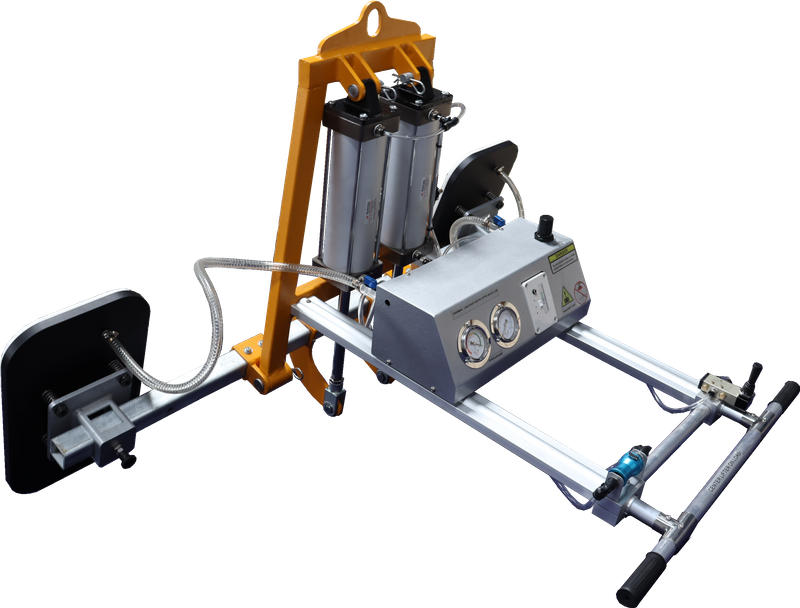

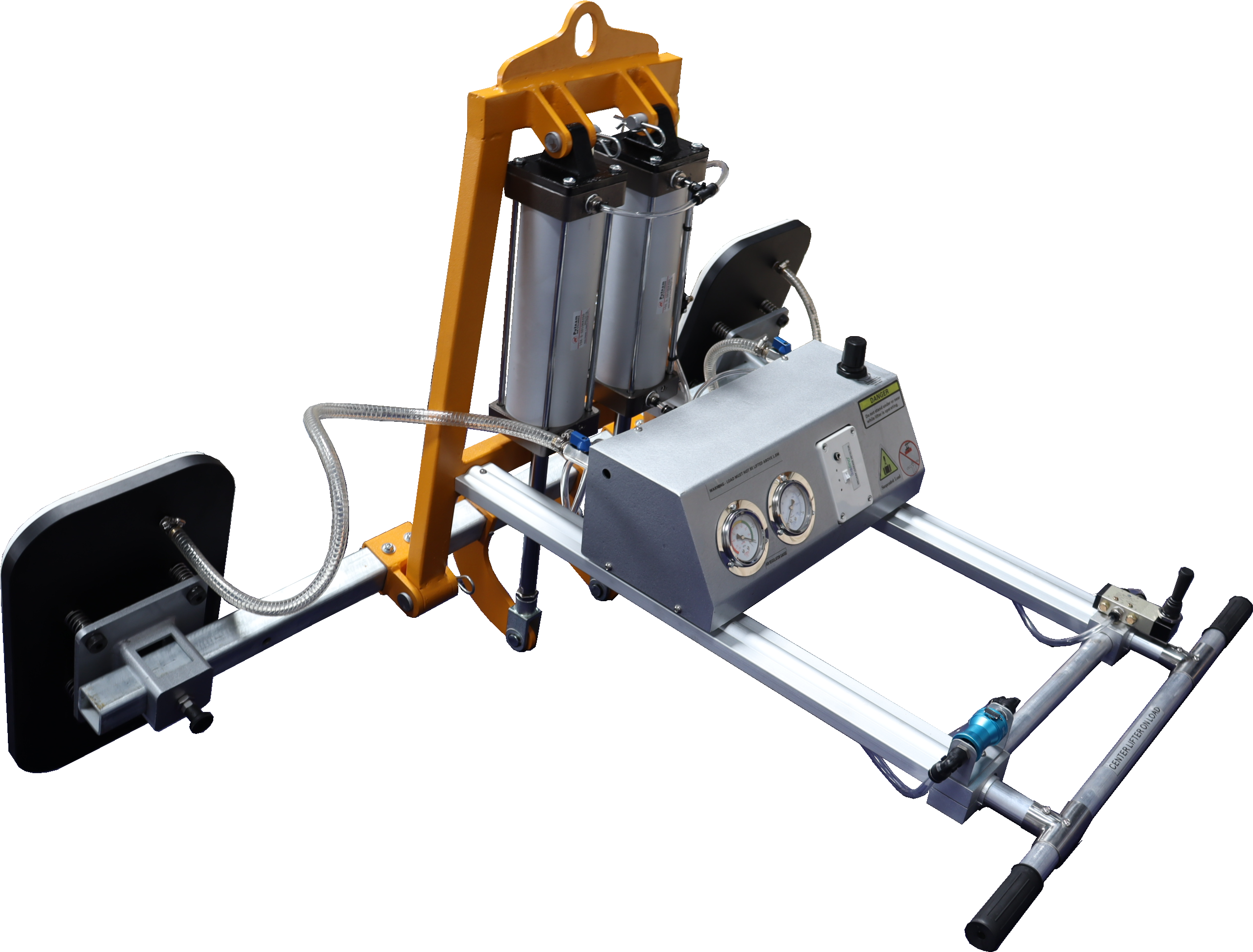

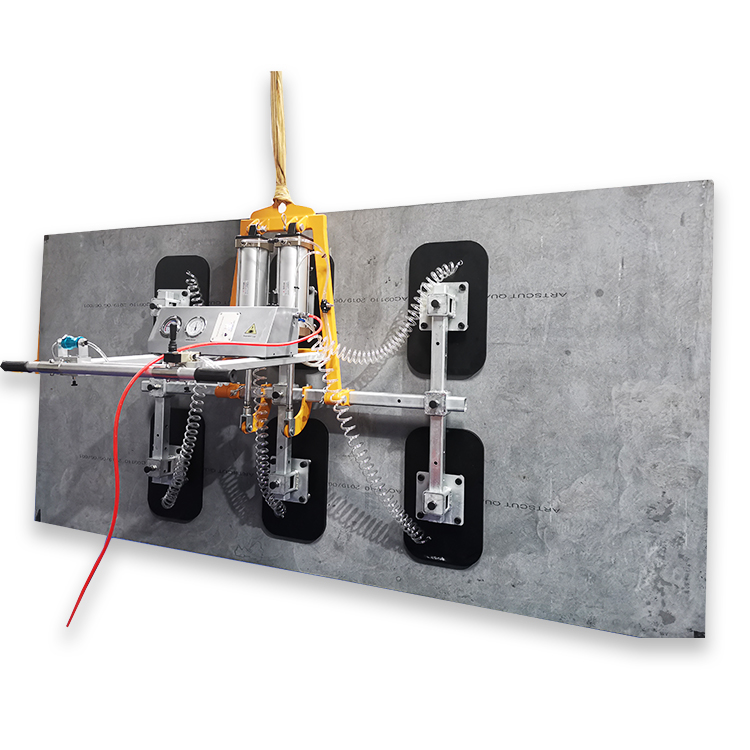

This vacuum lifter is engineered for lifting smooth and rough marble & granite slabs. It supports pneumatic vertical and horizontal tilting within a 0–90° range.
Technical Parameters |

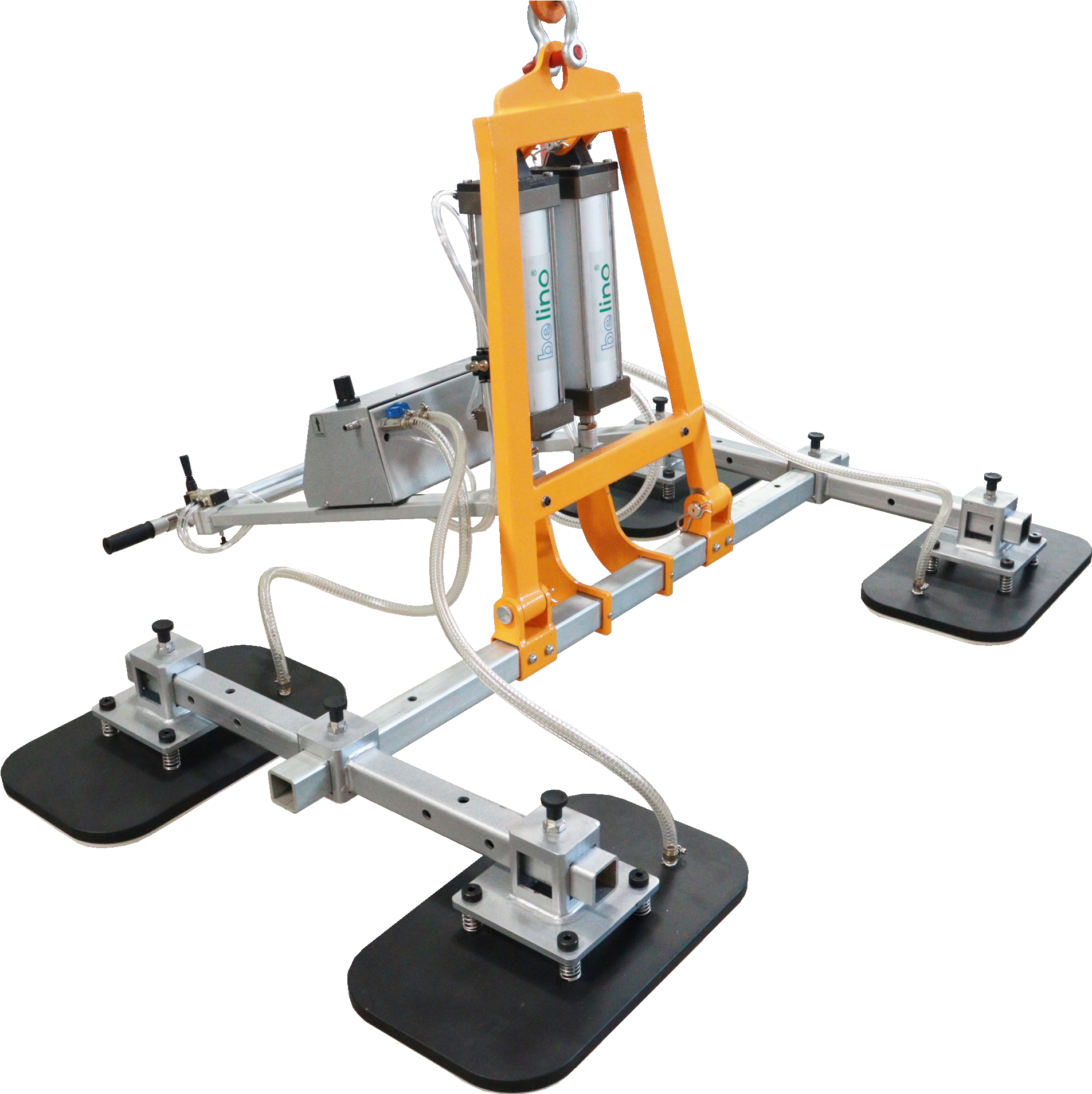

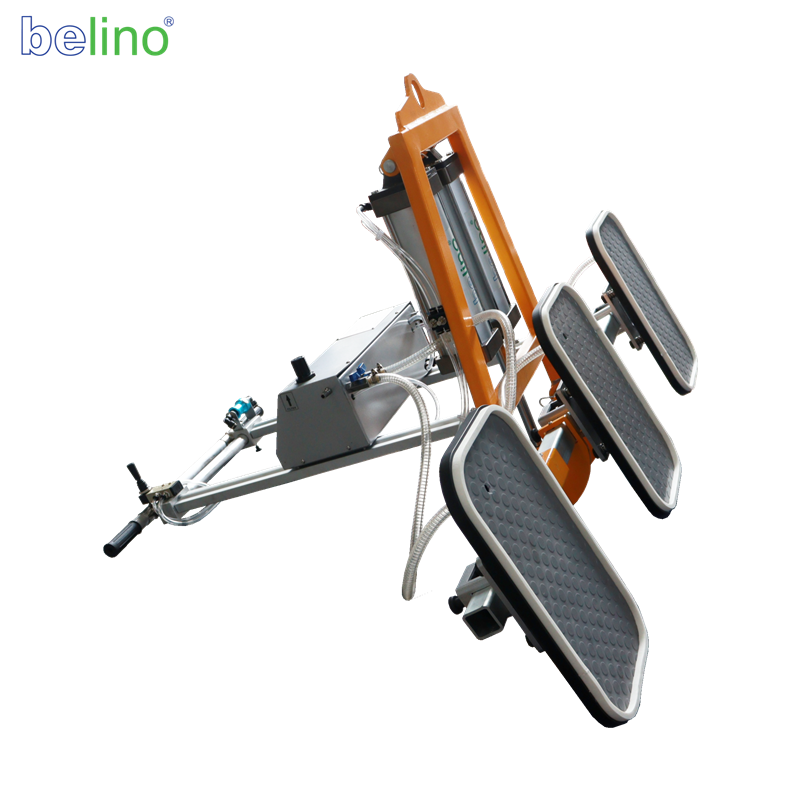

| Model | BVL500-P2 | BVL600-P3 | BVL1000-P4 | BVL1000-P6 |
| Quantity & Size of Sucker | 3pcs(L500×W300mm) | 4pcs(L500×W300mm) | 4pcs(L500×W300mm) | 6pcs(L500×W300mm) |
| Horizontal Capacity | 500kgs | 600kgs | 1000kgs | 1200kgs |
| Vertical Capacity | 250kgs | 300kgs | 500kgs | 600kgs |
| Tilt Degrees | 0°-90° | 0°-90° | 0°-90° | 0°-90° |
| Net Weight | 71kgs | 87kgs | 108kgs | 135kgs |
| Gross Weight | 109kgs | 140kgs | 163kgs | 190kgs |
| Package Size (L×W×H) | 1500×560×1130mm | 1500×555×1167mm | 1070×390×980mm | 1800×555×1500mm |

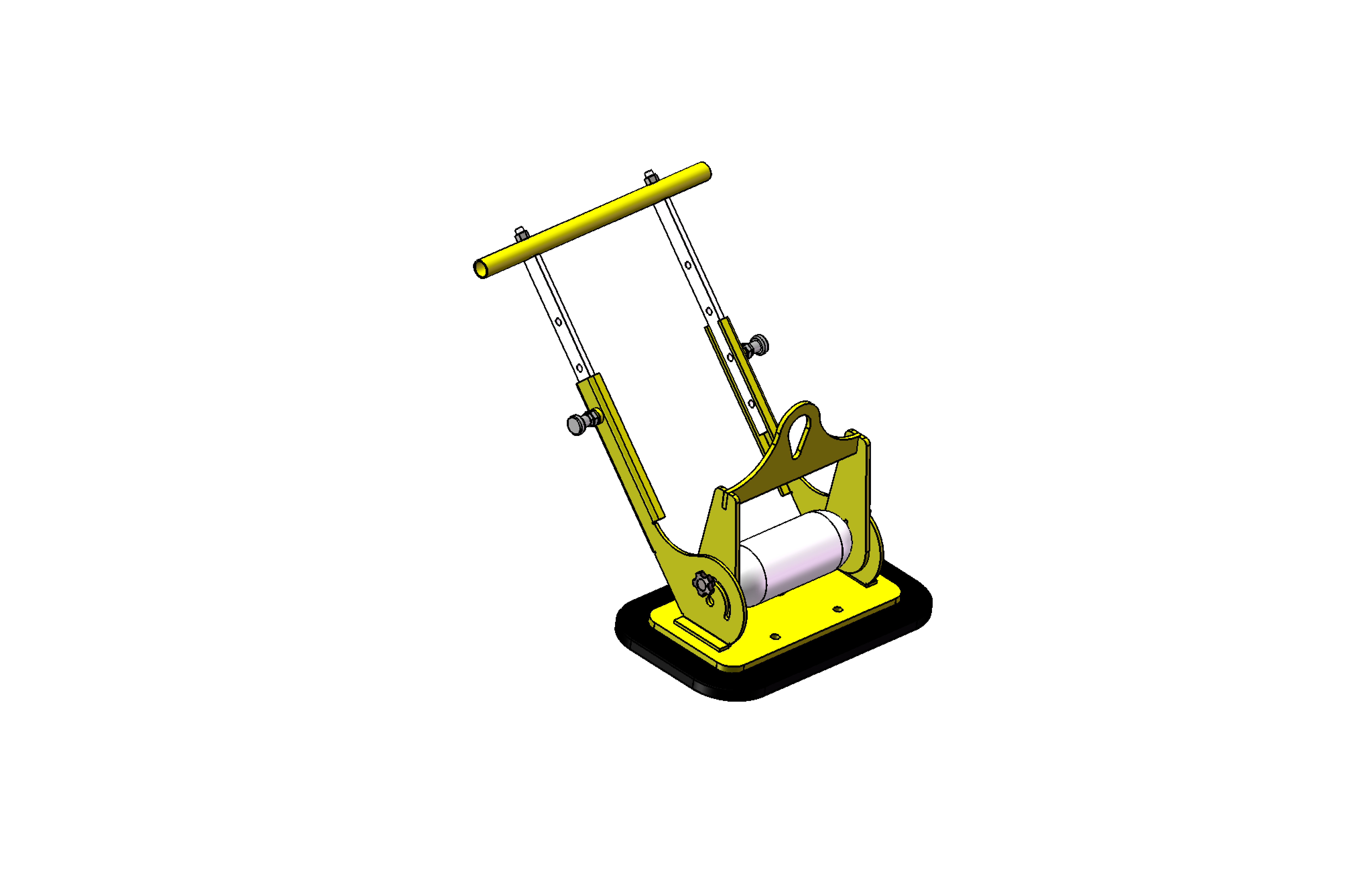

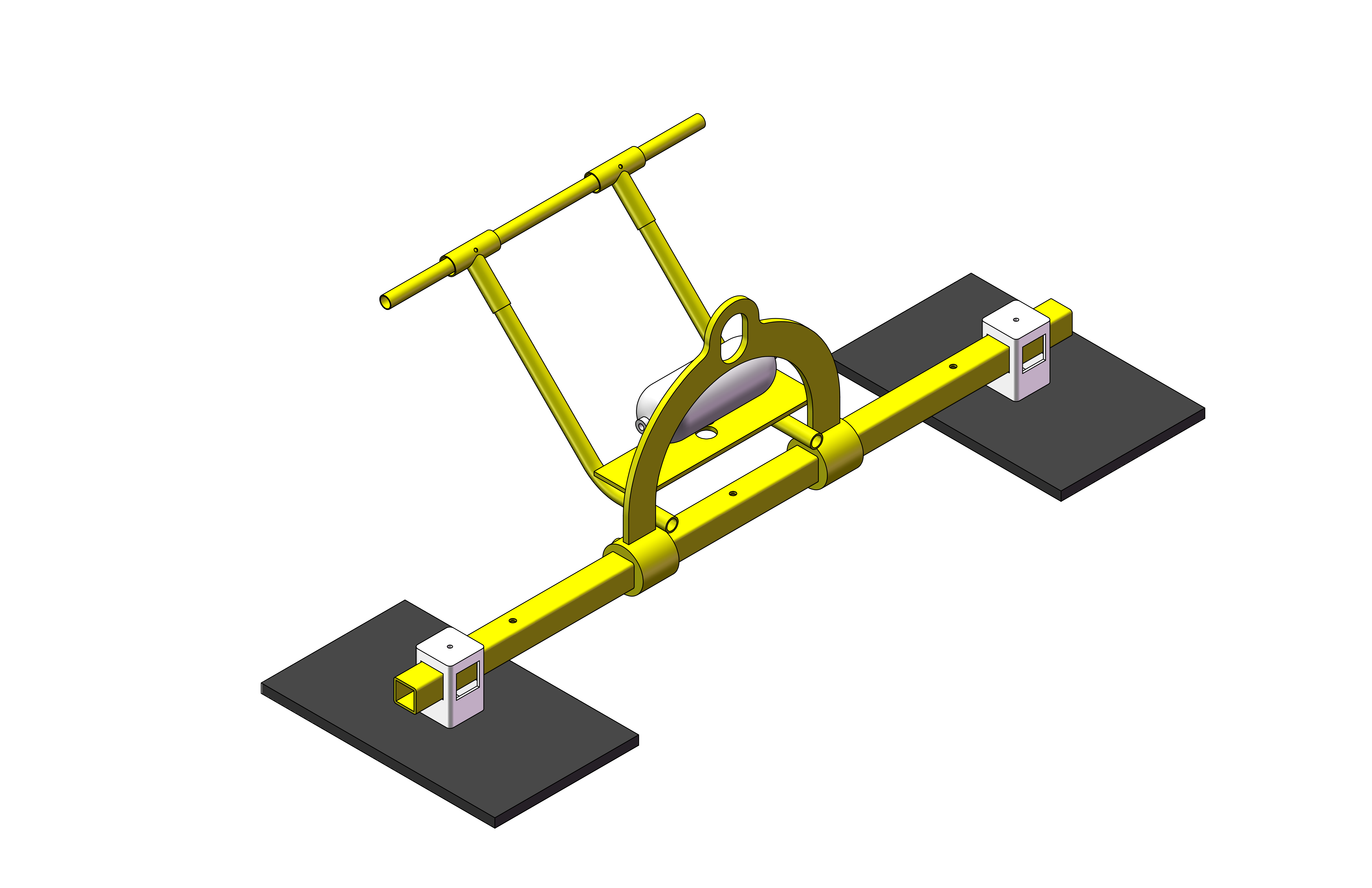

| Model | AVLM1 | AVLM2 |
| Quantity & Size of Sucker | 1 pc (L500×W300 mm) | 2 pcs (L500×W300 mm) |
| Horizontal Capacity | 250 kgs | 500 kgs |
| Vertical Capacity | 125 kgs | 250 kgs |
| Tilt Degrees | 0°–90° | 0°–90° |
| Net Weight | 28 kgs | 57 kgs |
| Gross Weight | 41 kgs | 80 kgs |
| Package Size (L×W×H) | 780×700×500 mm | 174×350×820 mm |
