Features
This A-frame transport rack is suitable for storing and transporting stone slabs both inside and outside workshops. A rubber cushion layer covers the frame surface to avoid scratches on stone panels.
Technical Parameters |

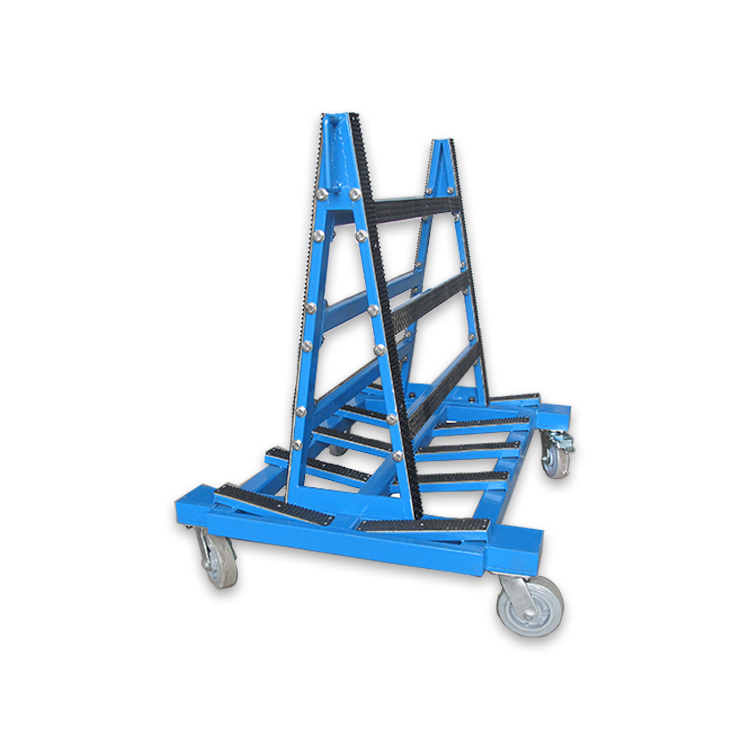

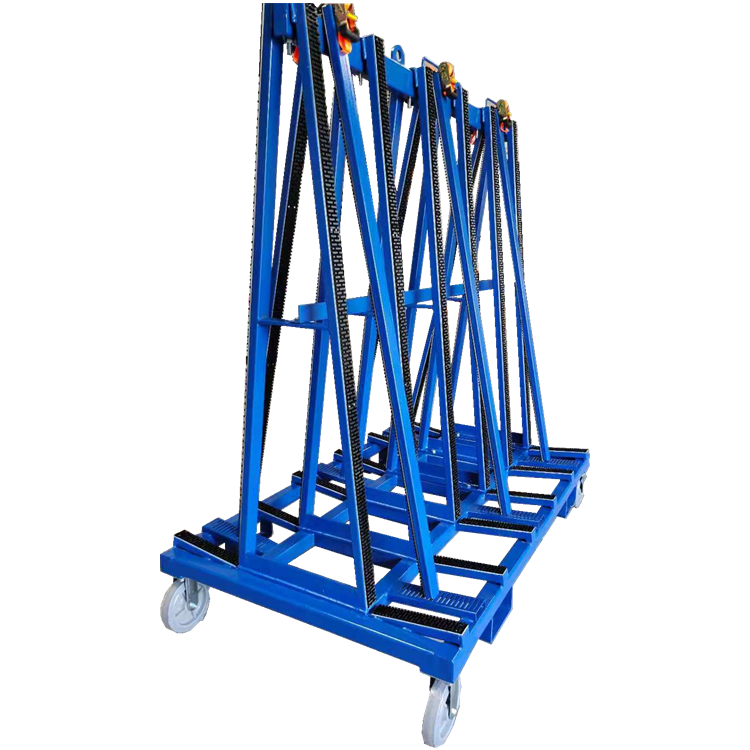

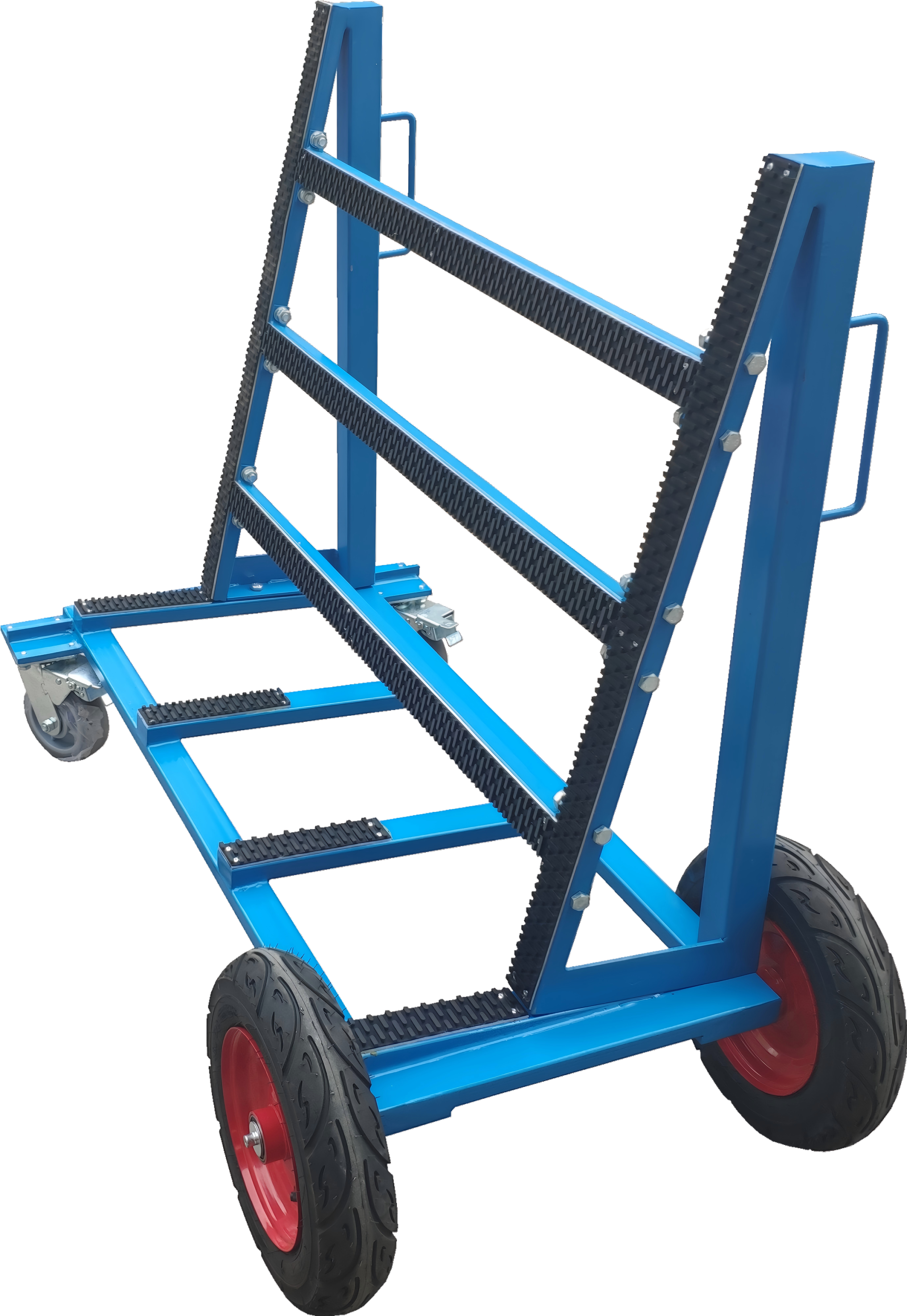

| Model | BNSS01 | BNDS01 | AF1850QP |
| Width of Each Side | 204.5mm | 204.5mm | 295mm |
| W.L.L. | 600kgs | 750kgs | 4000kgs |
| Net Weight | 44.8kgs | 61.7kgs | 215kgs |
| Package Dimensions | 1180×560×330mm | 1200×840×330mm | 1850×1300×320mm |

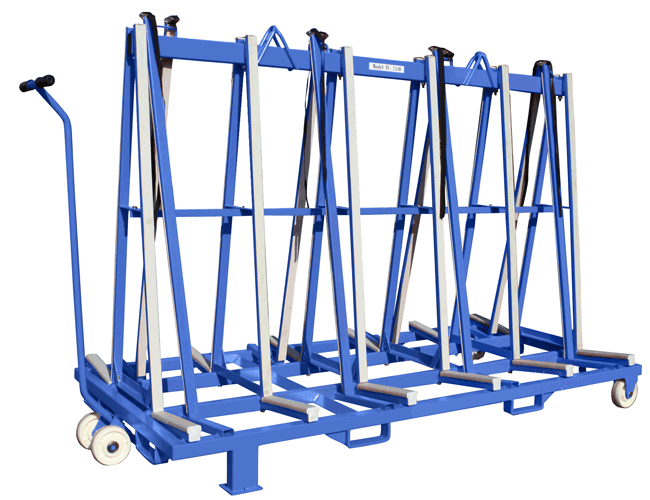

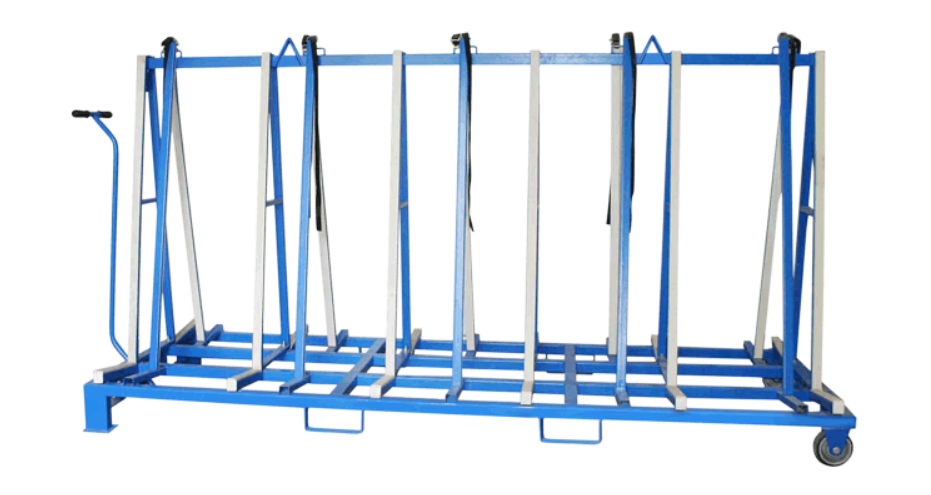

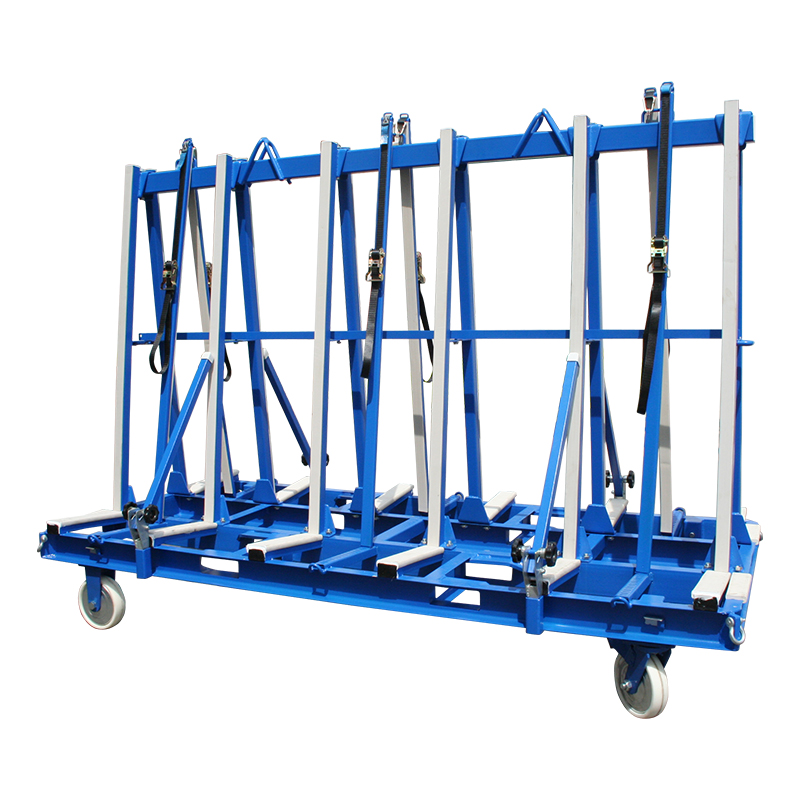

| Model | AF2440QP | TF2440PC | TF3050 |
| Width of Each Side | 323mm | 268mm | 268mm |
| W.L.L. | 4000kgs | 1500kgs | 1500kgs |
| Net Weight | 236kgs | 190kgs | 239kgs |
| Package Dimensions | 2450×1240×320mm | 2450×1120×430 | 3050×1120×430mm |
